Foothills Regional Services Commission

Foothills Landfill Expansion Cell 6

Foothills Regional Services Commsion contracted Devcon to excavate the new landfill cell, expanding Cell 6. This required removing topsoil, subsoil, clay, and rock cobble. After preparing the Cell 6 subgrade, crews installed a 750 mm clay liner compacted to 96% SPMDD, with moisture kept 2–5% above optimum. Additionally, Devcon supplied and installed a 60-mil HDPE liner, Geosynthetic Clay Liner, two-sided geo-composite, heavy non-woven geotextile, 200 mm perforated PVC leachate collection pipe, 300 mm HDPE riser, 150 mm PVC sub-drain pipes and risers, and all related fittings and connections.Once the geosynthetic liner system was completed, a tire-shred protection layer was placed.

1.4

M
Contract Value

10

Pieces of Heavy Equipment Used

5

Months to Complete

32

K
Square meters of HDPE Liner Installed

Devcon process

1

Site mobilization and survey

Conducted site mobilization, survey and lay down establishment.
2

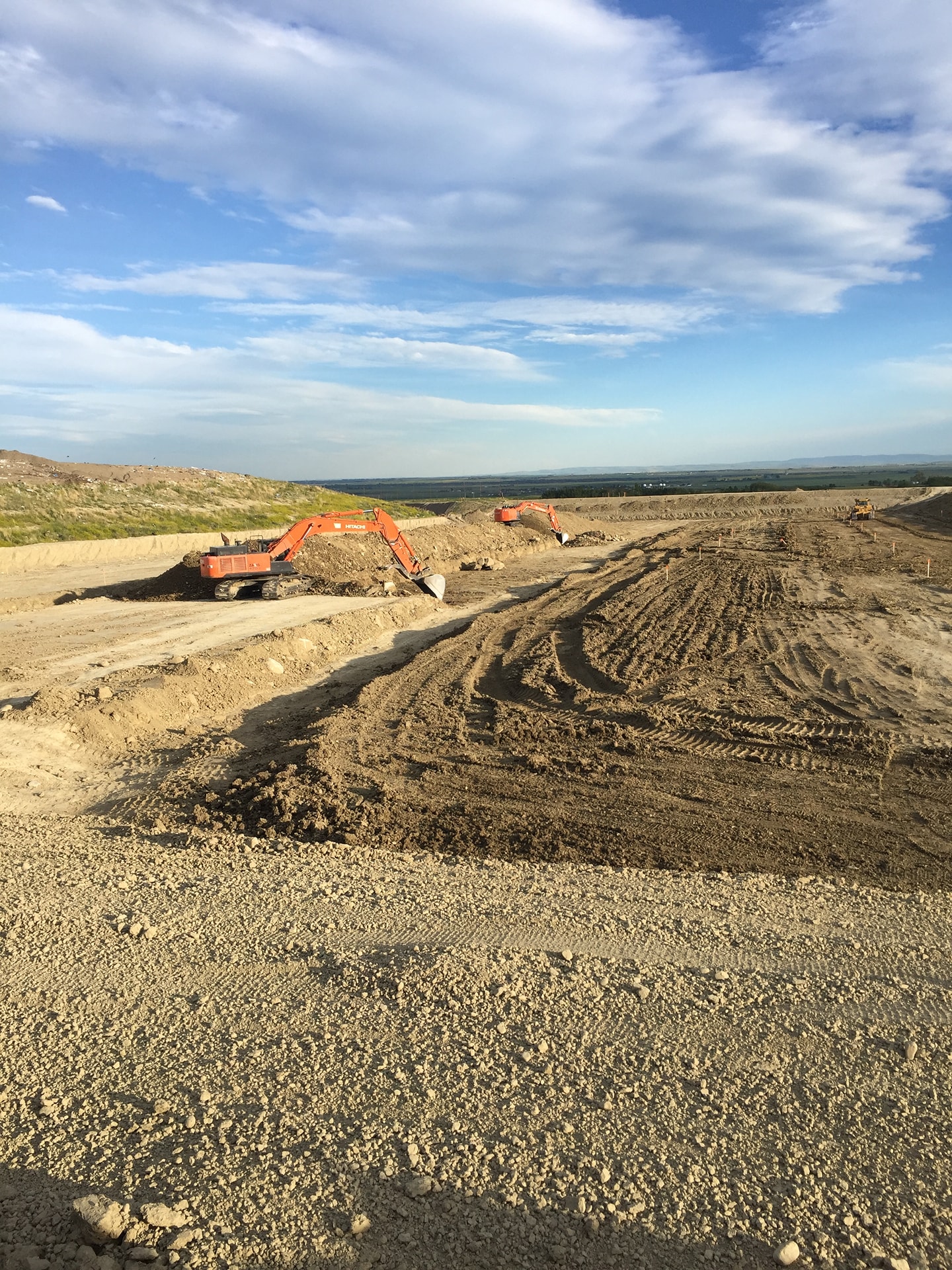

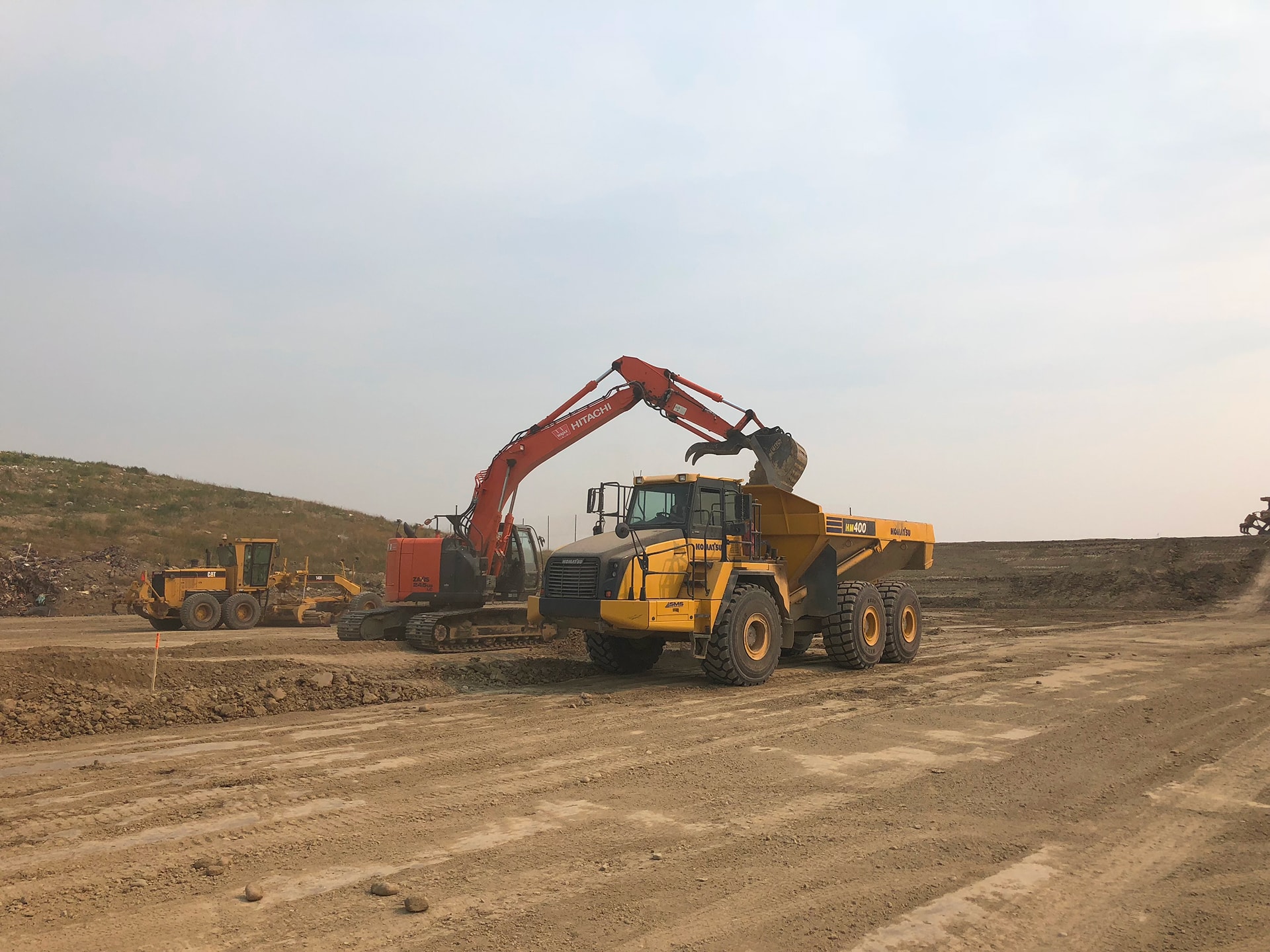

Excavation and material handling

Excavated topsoil subsoil and common materials then stockpiled and placed fill as required.
3

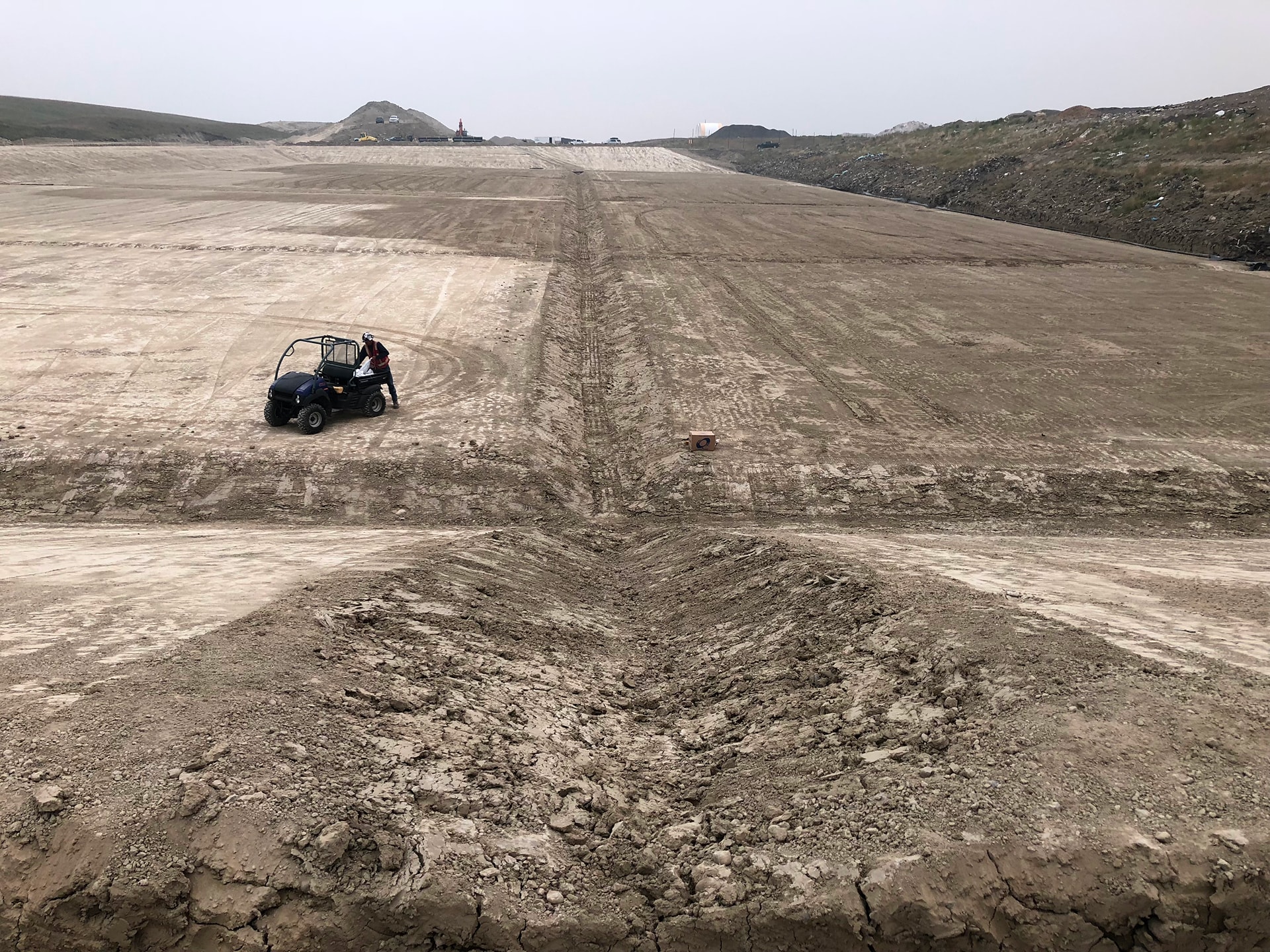

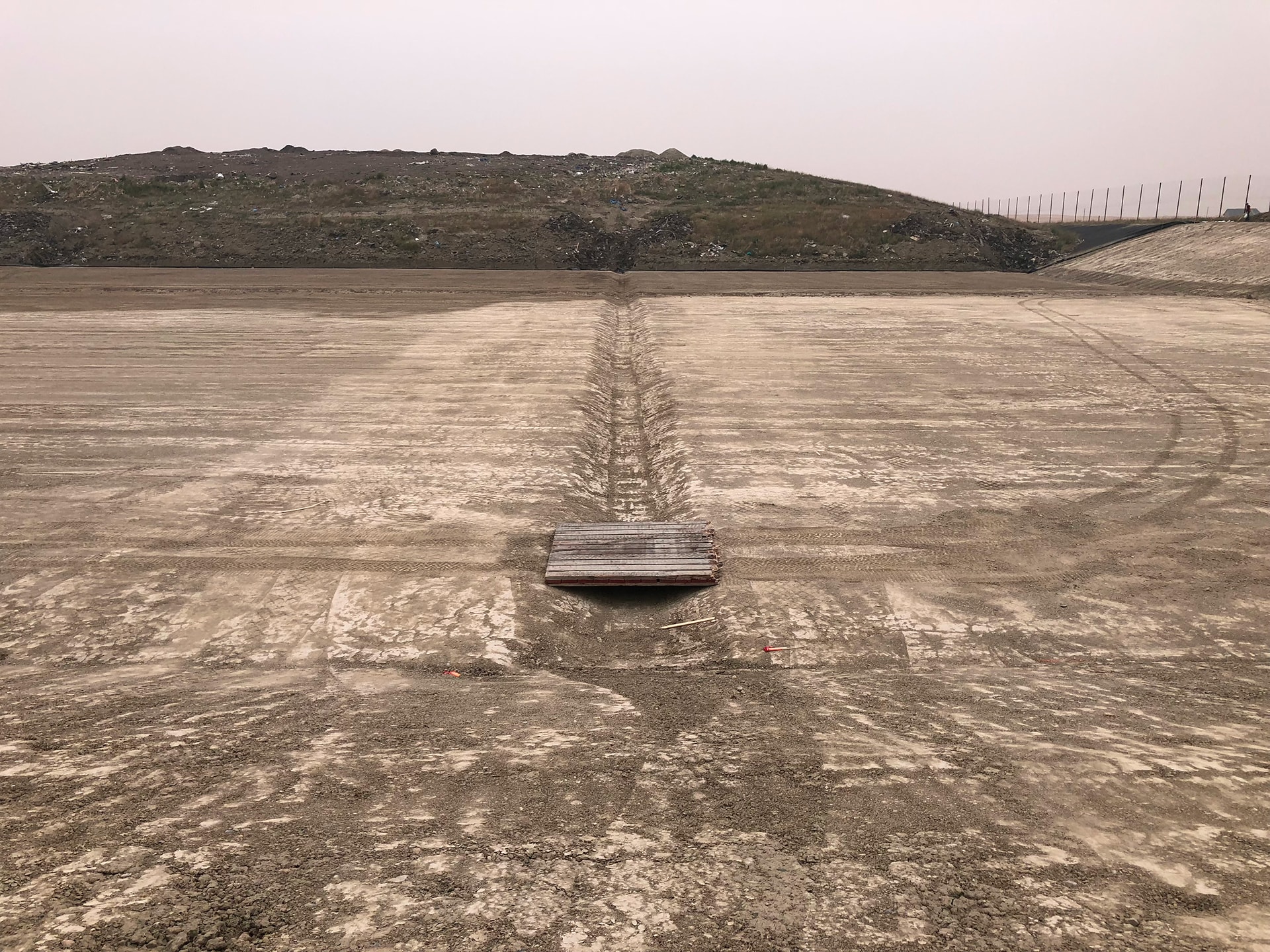

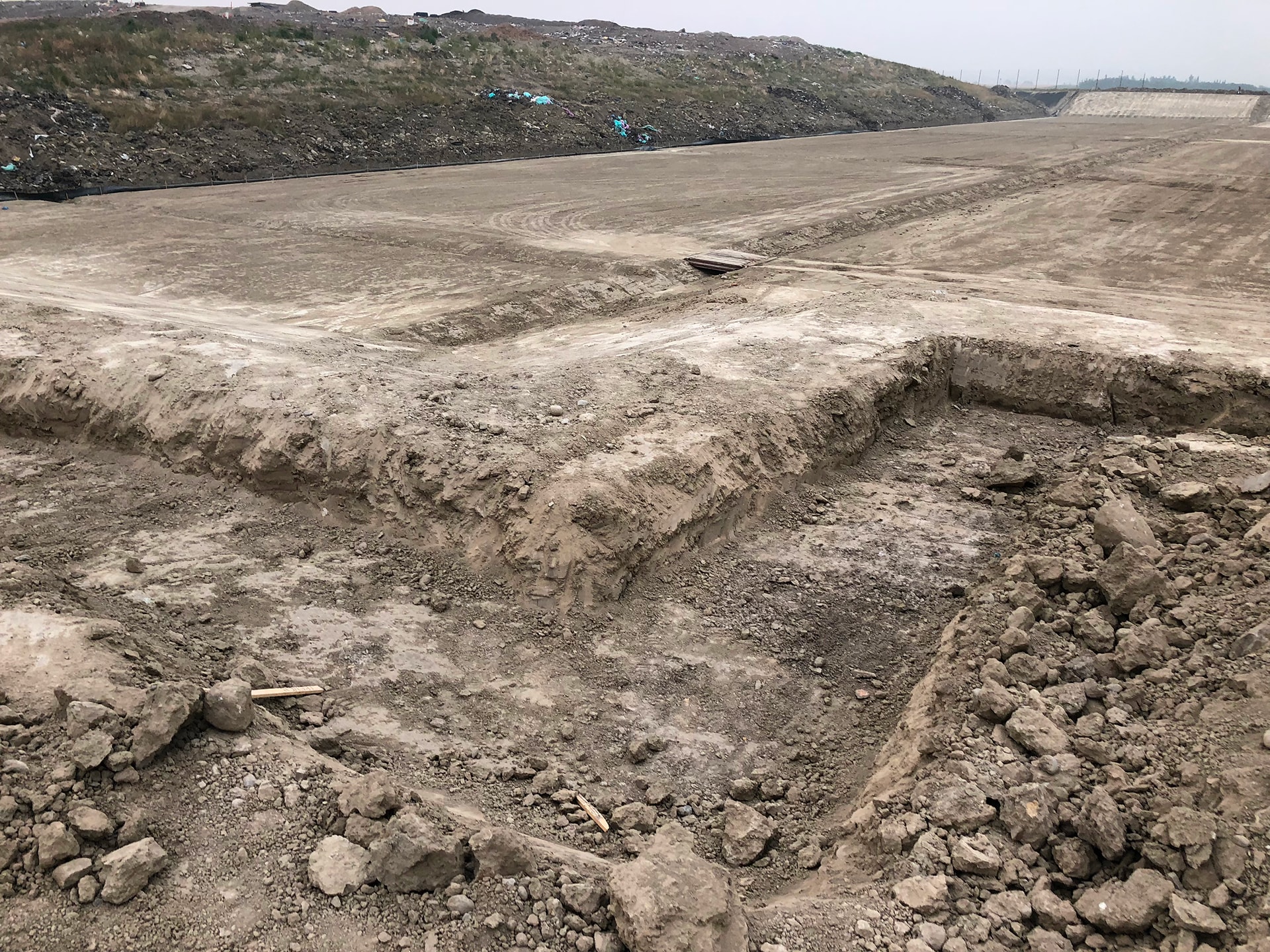

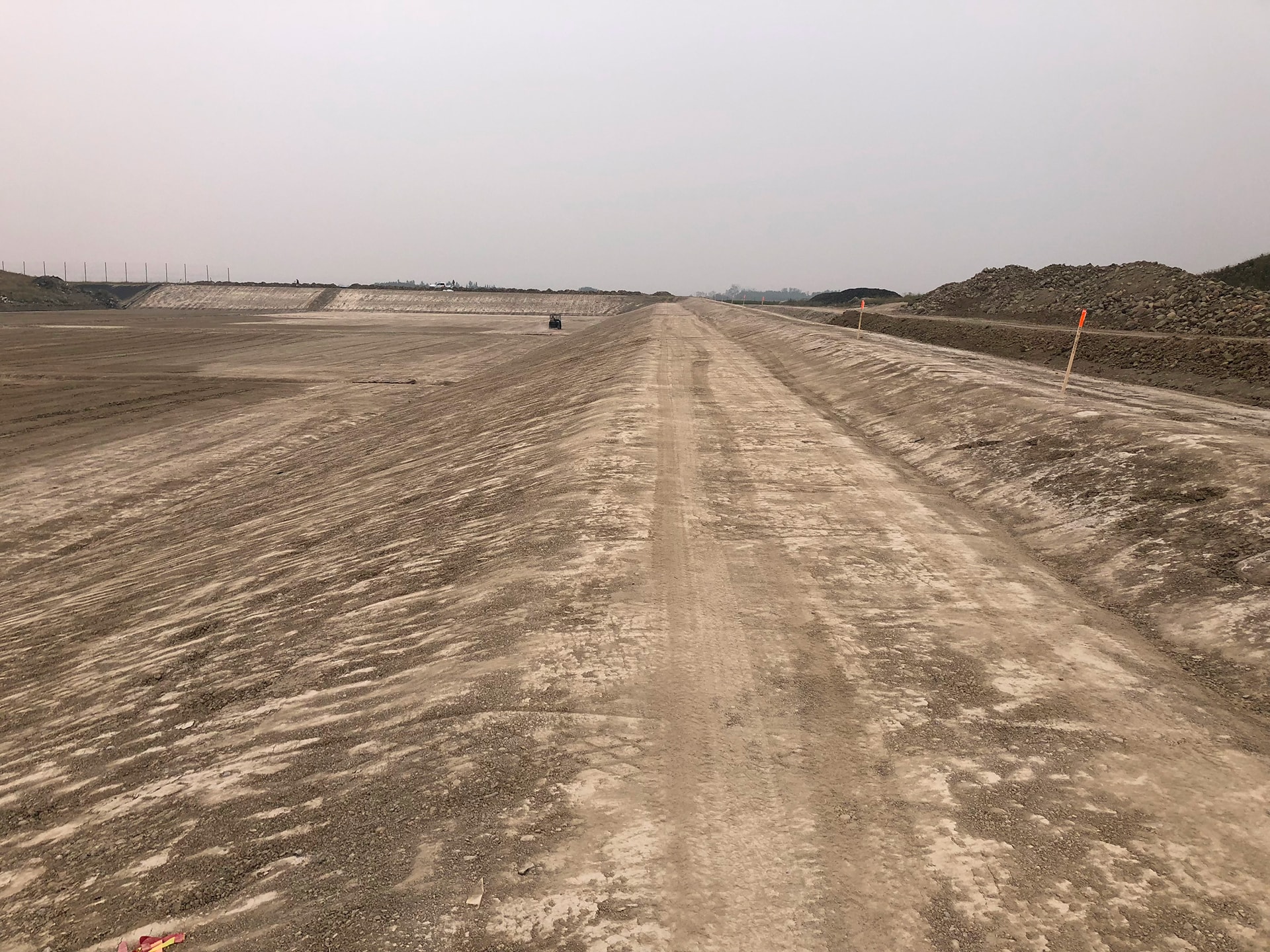

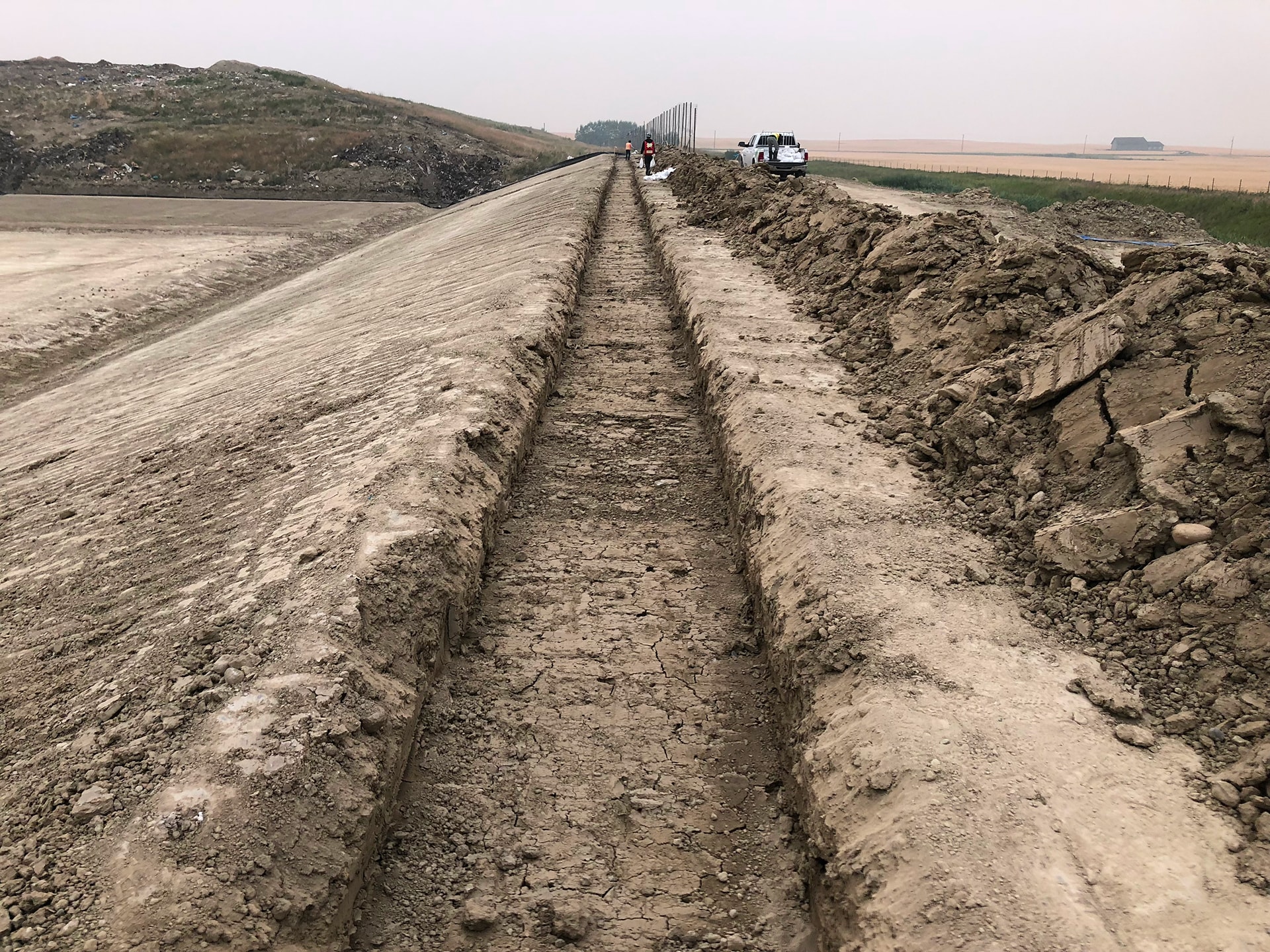

Subdrain excavation and clay liner installation

Completed subdrain excavation and installation followed by placement of the clay liner to all engineering specifications.
4

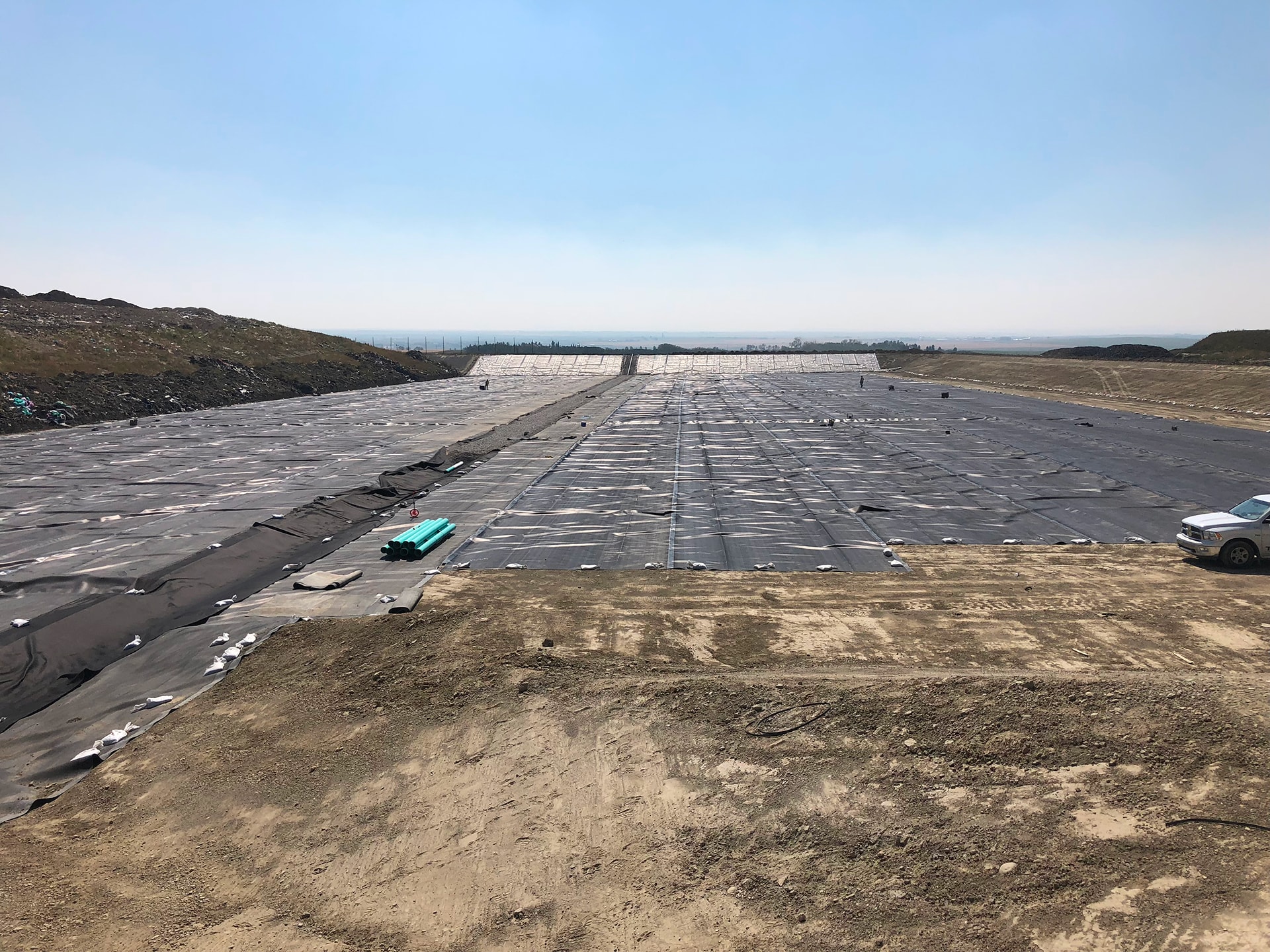

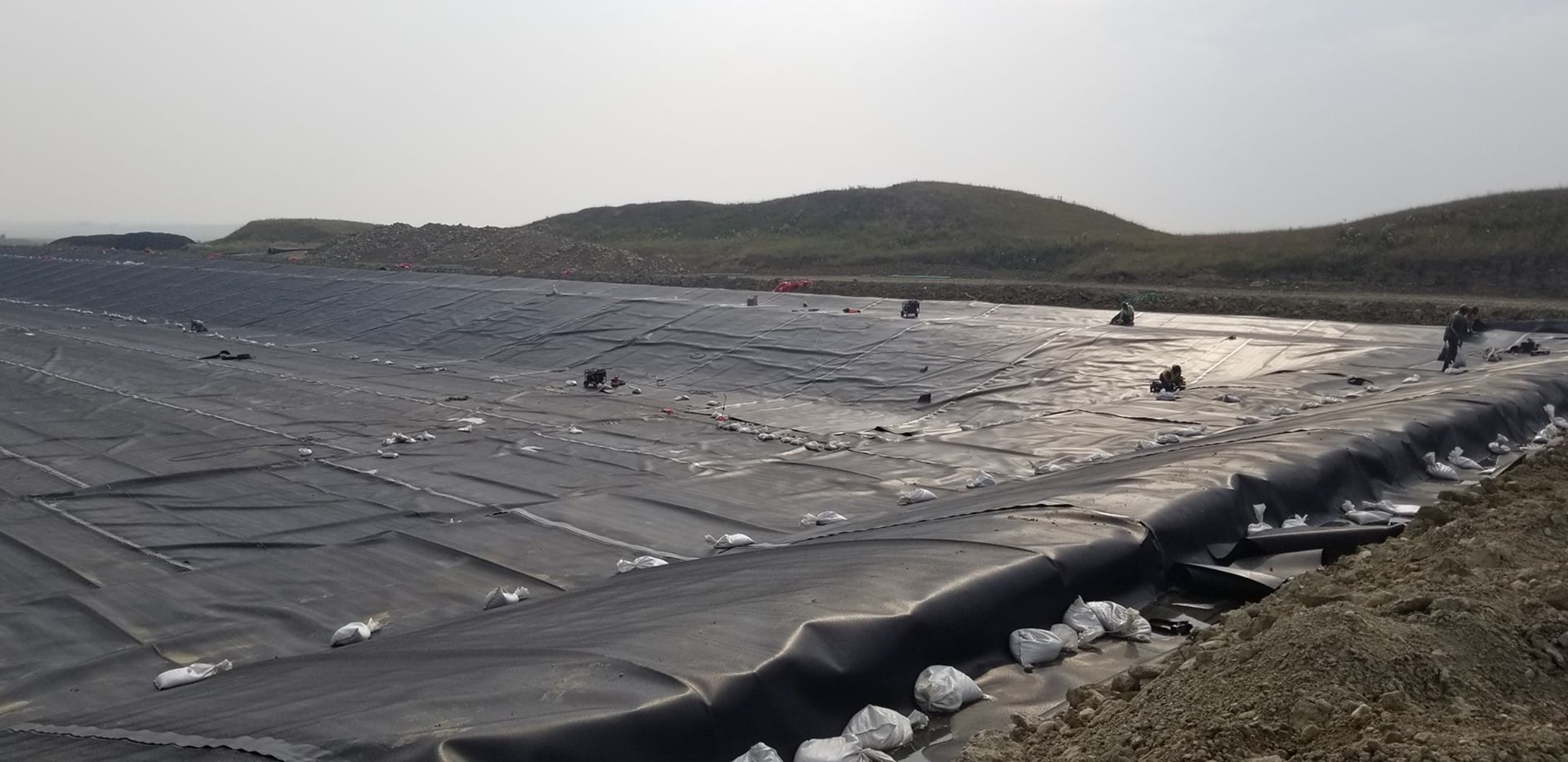

HDPE liner and leachate system installation

Managed tandem installation of the HDPE liner and leachate collection systems.
5

Site finishing and demobilization

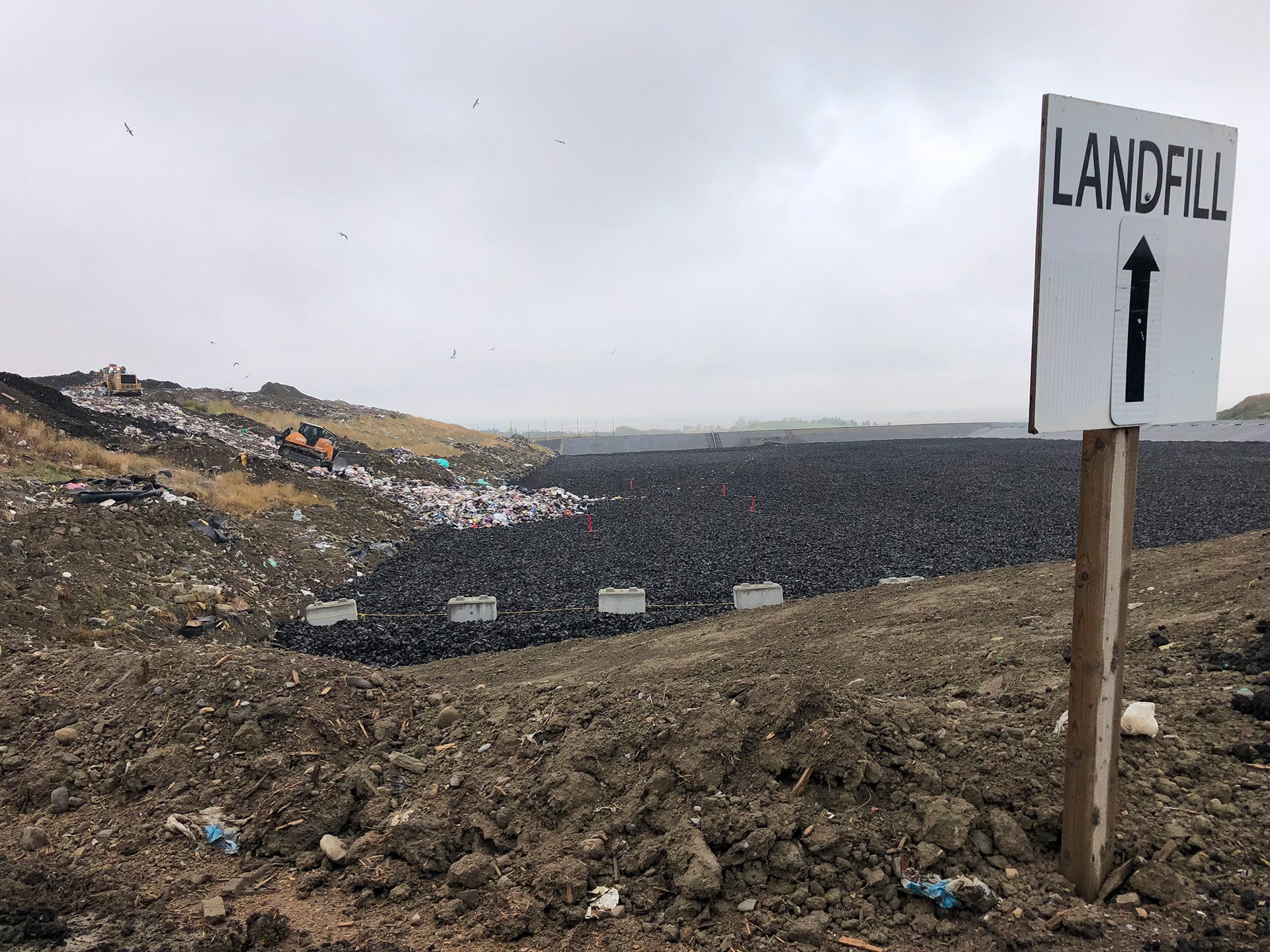

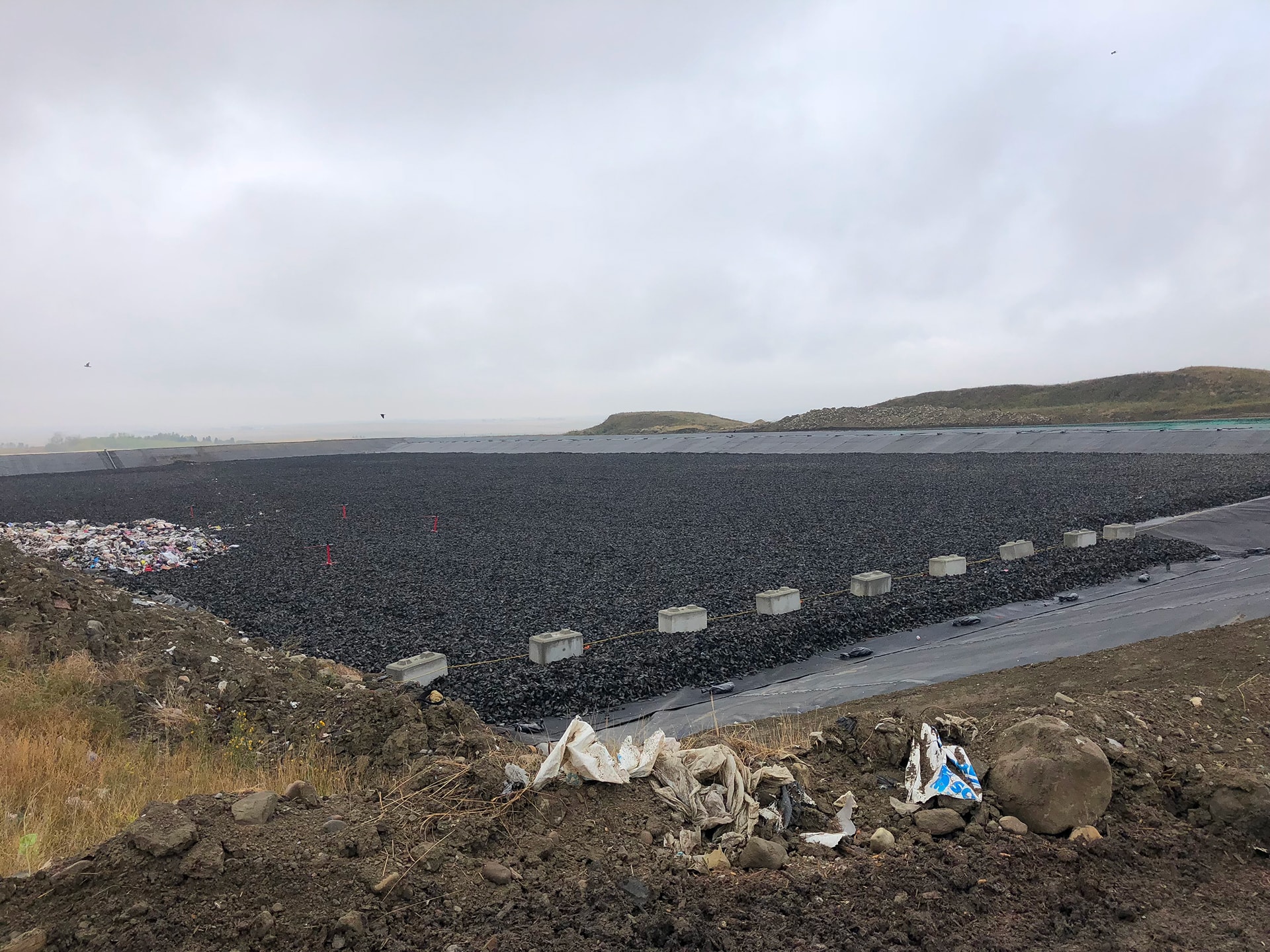

Completed final site finishing including tire shred installation landscaping cleanup and full demobilization.
